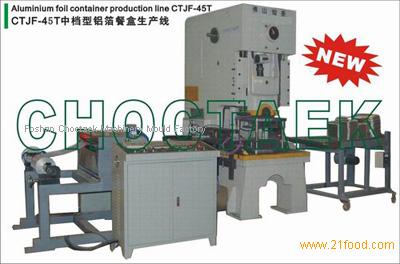

Aluminum food container production line CTJF-45T
Aluminum foil container production line CTJF-45T has been developed from production line CTJF-40T to produce aluminium food containers,dishes and trays. The working speed of production line CTJF-45T is 40-70 pcs/min (with one cavity mould), and its speed depens on container’s size and complexity. The press of this production line is equited with a higher closed height and a longer stroke length, so it can match a larger range of mould size than 40T
aluminium foil container prodcution lines is composed of the followings:
1. Decoiler (with an auto-lubricator)
2. Electrical control panel
3. Air output control equitment
4. 45T press
5. Mould
6. Conveyor
7. Collection desk
Main Features of production lines:
(1) Those production line can work automatically. Worker control and regulate this production line through electric control equitment.
(2) The width of decoiler is about 500mm.
(3) The feeding system control feeding length and stepping by computer, which assure a high-precision steps.
(4) We can design and manufcture different machines on request. There is some difference in machine’s outer-apparance.
(5) The press may be equited with single cavity or muti-cavity moulds for wrinkle-wall or smooth-wall container production.
The working flow of production line:
Aluminium foil roll---decoiler---air output control equitment--- press---mould---conveyor--- collection desk---packing
