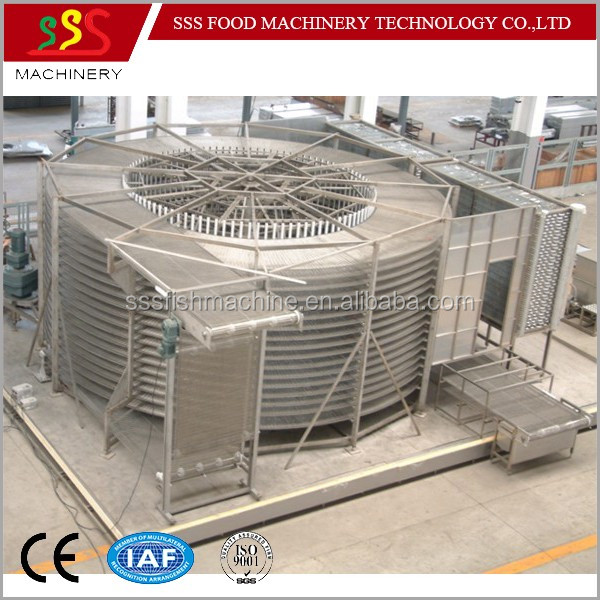

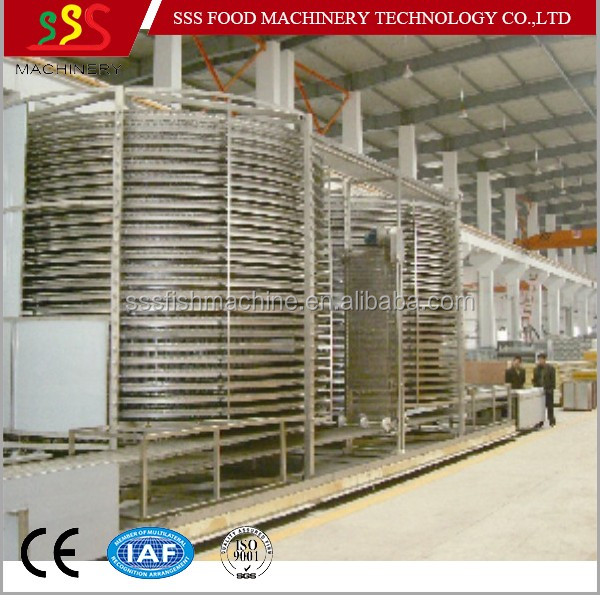

High Quality Spiral Freezer IQF Freezer for Fish Shrimp Meat Chicken Cake Seafood
1. freezing product and temperature
Freezing product: fish, meat, seafood, pastry, poultry, ice cream, etc.
Freezing capacity: 300kg/hour
Freezing method: IQF
Temperature of inlet: 15°C
Temperature of inlet: -18°C
Temperature of evaporation: -42°C
Temperature of inner: -35°C
Freezing time: 15-90 min (adjusted)
2. technical data
| Model | SSS-DLD300 |
| diameter of tumbler | 2500mm |
| net height between layers | 200mm |
| belt width | 500mm |
| belt length | 185m |
| inlet length | 2300mm (equipped with cleaner and blower) |
| outlet length | 1000mm |
| freezer dimension | 7600x3700x3300mm |
| power | 11kw |
3. main characteristics
1) Conveyor belt is made of special high strength stainless steel 304 which can meet food grade, running smoother and lasting longer;
2) All components can fully meet the hygienic requirements of HACCP;
3) This equipment is in life-long design which is structured as installation not welding, it will be much easier to maintenance;
4) Driving control is made of fine stainless steel;
5) There is unique design of symmetrical and fluent circle wind channel, which can keep cold in inlet and outlet;
6) It is equipped with evaporation in high efficiency which is 30% higher than common evaporation;
7) The bottom is made of stainless steel in 3mm thick,no leak and no risk of burst;
8) Main control components are from Schneider, and control box is made of stainless steel;
9) Reducer is from SEW, which can ensure high efficiency and long life.
4. This machine can be customized as per your requests.
